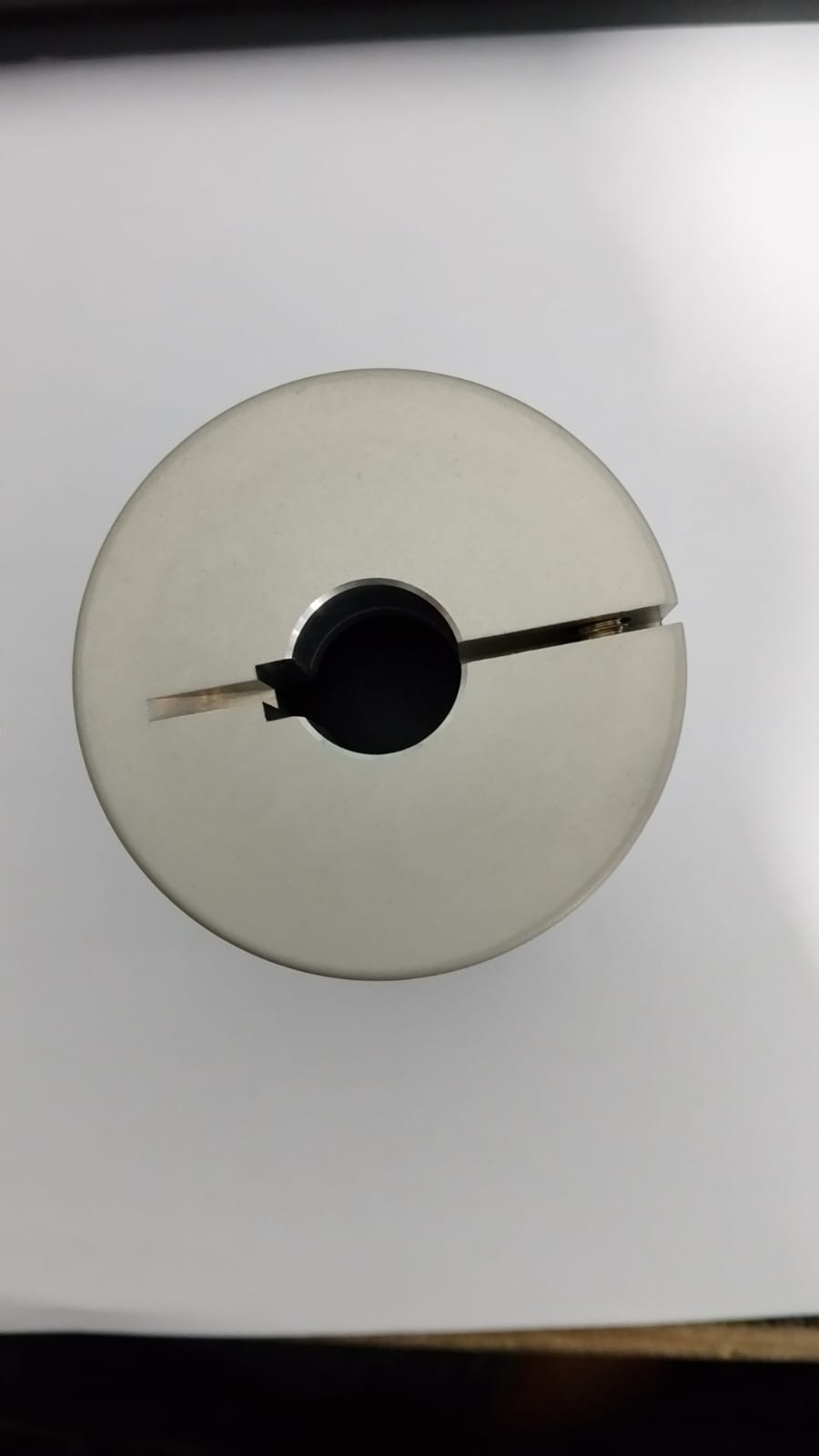

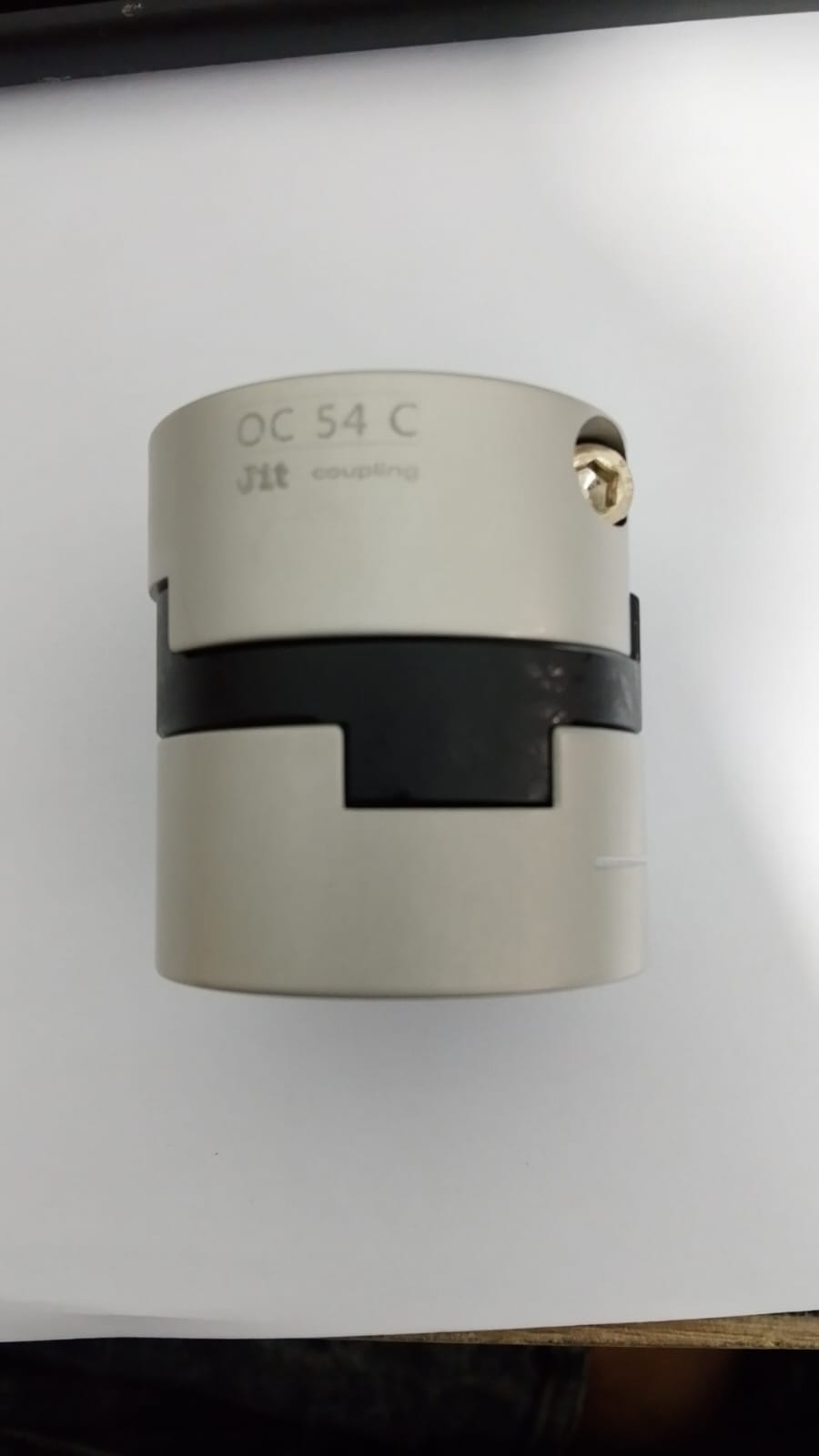

JIT COUPLING SOH53C (15K5*15K5) / ( OC54C-15-15-LK5-RK5 )
$48.96
or 4 interest-free installments by Afterpay.
Guaranteed safe checkout
Free Delivery 30 Day Trial Free Returns
Need Help? Call Us +1 255 854 55 26
Monday - Friday 9:00 - 17:00
Monday - Friday 9:00 - 17:00
Delivery Info
- Standard and Express delivery services are available for all items.
- Shipping costs are calculated at the checkout page (after delivery option & destination confirmation).
- Tracking is available for all delivery options.
- Items are delivered during standard business hours.
Description
Description
JIT Precision Coupling tipe Oldham Coupling (OC) Tipe Oldham Coupling terdiri dari tiga bagian: dua hub aluminium di ujung dan satu spacer plastik (biasanya polyacetal) di tengah. Kopling ini sangat baik dalam menangani ketidaksejajaran paralel yang besar.
- Tipe Seri (OC54C): Seri OC (Oldham), ukuran diameter luar 54 mm, tipe C (Clamping/Klem).
- Ukuran Bore (15-15):
- Sisi d1: 15 mm.
- Sisi d2: 15 mm.
- Kustomisasi Pasak (LK5-RK5):
- LK5: Left Keyway (Lubang pasak kiri) ukuran 5 mm.
- RK5: Right Keyway (Lubang pasak kanan) ukuran 5 mm.
(Catatan: Kode SOH53C kemungkinan merujuk pada seri desain sebelumnya atau penamaan khusus pabrikan untuk dimensi serupa). - Diameter Luar (D): 54 mm.
- Panjang Total (L): Sekitar 55 mm.
- Torsi Terukur (Rated Torque): ±18 N.m (tergantung material spacer).
- Kecepatan Maksimum: Sekitar 6.000 RPM.
- Material Hub: High-strength Aluminum Alloy.
- Material Spacer: Polyacetal (sifat isolasi listrik yang baik dan tahan aus).
